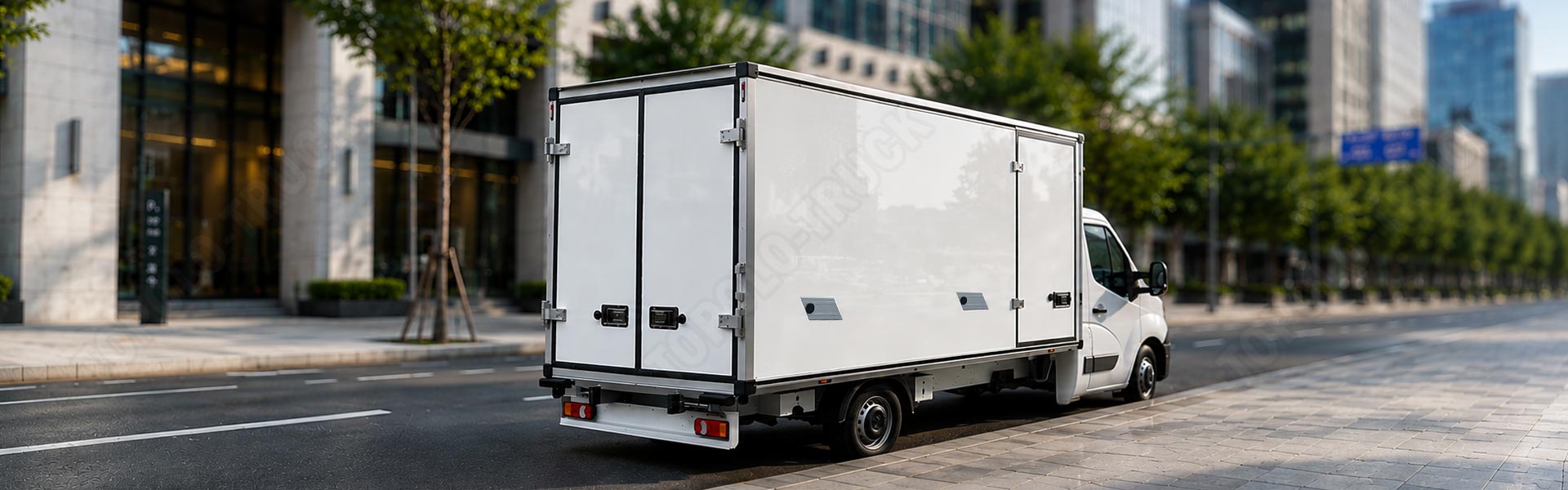

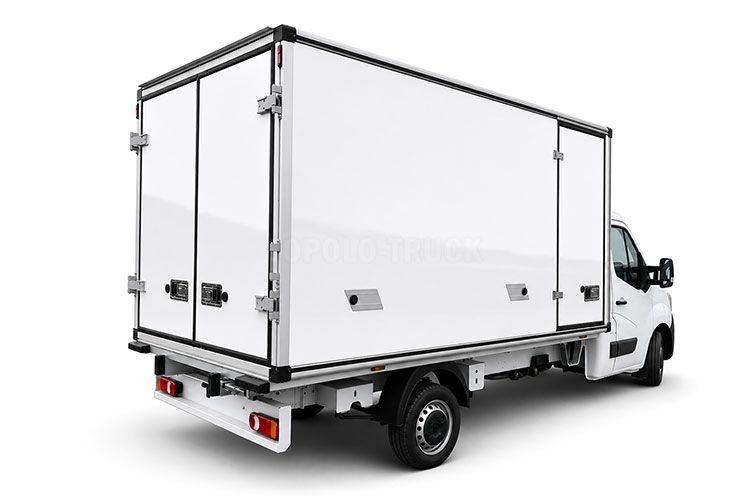

TOPOLO offers customized temperature-controlled truck body solutions, providing different sizes and configurations to meet customer needs. These solutions combine excellent insulation, high-strength structure, and durability.
- Specialized modular body design
- High-performance composite materials
- Customized body parts
- CKD, SKD, CBU assembly
DESCRIPTION
Temperature-controlled bodies maintain the required temperature conditions for goods throughout the transportation process, ensuring product quality, safety, and the continuity of cold chain transportation. They are widely used in the transportation of food, pharmaceuticals, chemical products, flowers, and other temperature-sensitive goods.
Common Dimensions (External)
| Size (Length x Width x Height) | Load Capacity (Ton) |
| 4.2 x 1.8 x 1.8m | 1.5 |
| 4.2 x 1.8 x 1.85m | 2 |
| 5.8 x 2.1 x 2.2m | 3 |
| 6.2 x 2.0 x 2.0m | 5 |
| 7.4 x 2.2 x 2.2m | 5 |
| 9.6 x 2.3 x 2.7m | 25 |
| 12.5 x 2.4 x 2.7m | 28 |
Specifications
| Box panels | FRP skin XPS (Extruded Polystyrene) foam sandwich panel FRP skin PU (polyurethane) foam sandwich panel |
| Floor | Anti-slip checkered aluminum floor Aluminum extrusion floor Gravel floor |
| Common panel thickness | Top panel: 80mm |
| Side panel: 80mm | |
| Front panel: 80mm | |
| Door panel: 80mm | |
| Floor panel: 100mm | |
| Door design | Double rear swing door Triple rear swing door |
| Door frame | Stamped mirror 304 stainless steel |
| Door retainer | Magnetic |
| Hinge | 304 stainless steel |
| Connecting profile | 6061 aluminum alloy extrusion profile |
| Subframe | T700 galvanized steel |
| 6061 aluminum alloy | |
| Door seal | EPDM rubber |
| Refrigeration unit (Optional) | Thermo King, Carrier, etc |
| Customizable accessories | Signal lights, meat hooks, support rods, liftgates, ventilation fans, door curtains, interior lights, kick plates, bumper strips, etc. |
Application Fields
☑ Food & Beverage
- Fresh fruits and vegetables
- Meat and seafood
- Dairy products
- Frozen foods
- Beverages
☑ Pharmaceutical Industry
- Vaccines
- Medicines
- Biological products
- Medical supplies
☑ Other Temperature-Sensitive Goods
- Flowers and plants
- Chemicals
- Cosmetics
- Specialty industrial materials
Rear Door Types

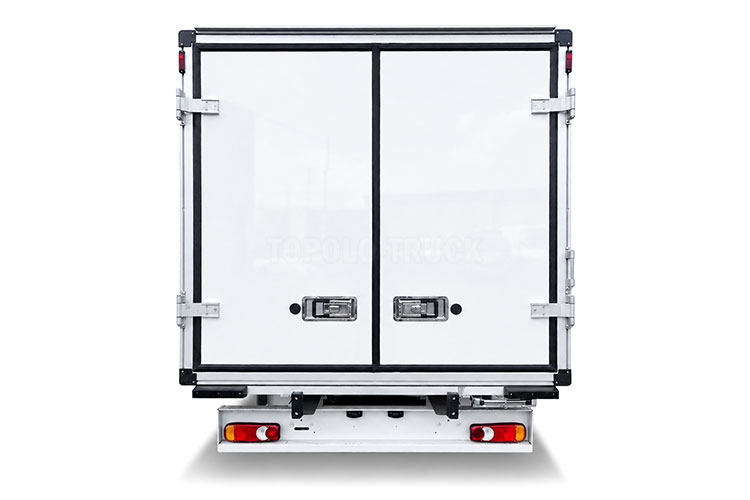

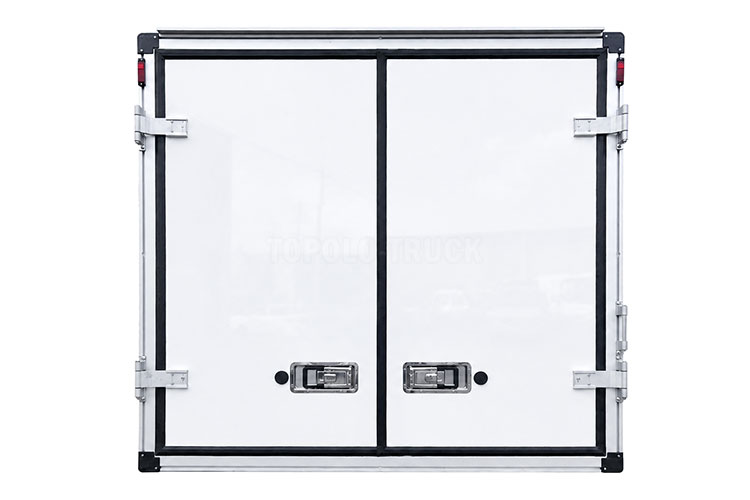

Flush-Mount Paddle Latch Door
Features an integrated internal locking system with concealed lock rods for a clean, streamlined appearance.
External Cam Lock Door
Features externally mounted locking rods and a robust cam-lock mechanism for reliable door security. Compared with internal locking systems, the external lock rod design offers a simpler structure, easier maintenance, and convenient operation.
Roll-Up Door
It maximize loading space around the vehicle and allow quick access to cargo without requiring rear door swing clearance.

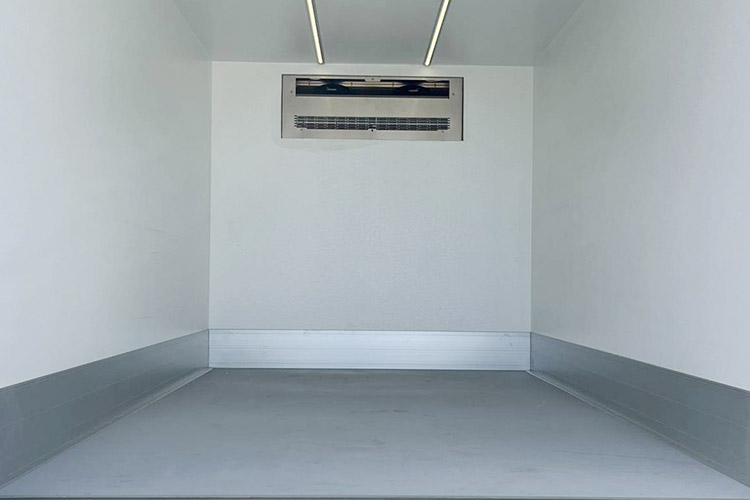

Box Body Floor Solutions

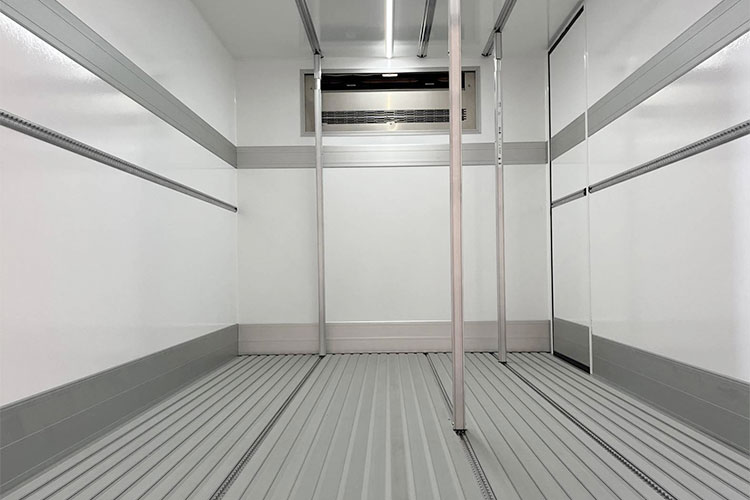

Aluminum Extrusion Floor
Features excellent load-bearing capacity, meeting the needs of palletized goods and forklift loading and unloading operations.
Gravel Flooring
The floor surface features raised quartz particles, providing excellent slip resistance.

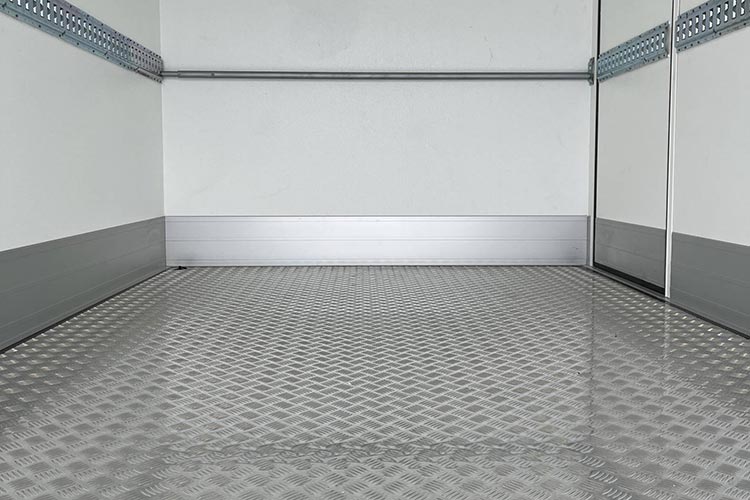

Checkered Aluminum Floor
Made of patterned aluminum sheet, it is lightweight, corrosion-resistant, and has a smooth surface that is easy to clean and maintain.
Upgrade Configuration

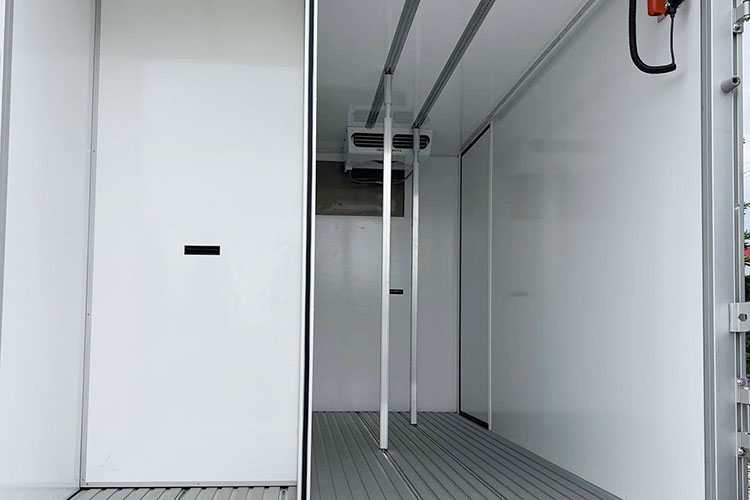

Multi-Temperature Partition System
Utilizing temperature zone partitions installed on floor and ceiling rails, the box body can be flexibly divided into multiple zones, enabling the simultaneous transport of different types of goods.

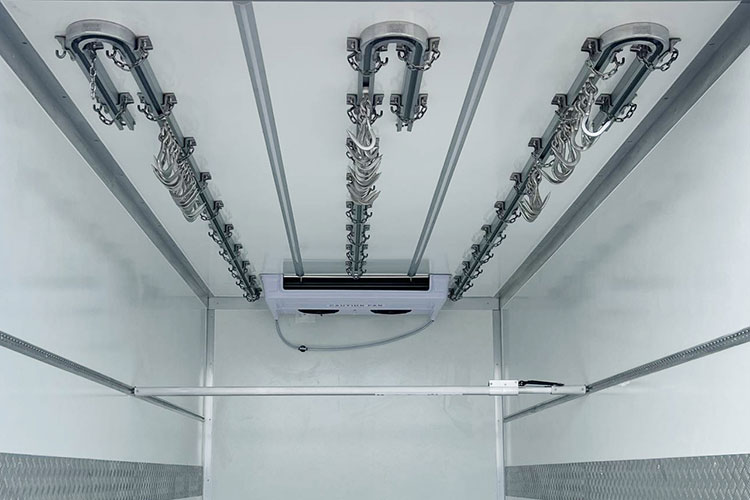

Meat Rail System
A suspended rail system specifically designed for meat transportation, used for the safe transport of beef, lamb, and pork, maintaining product hygiene and reducing cargo damage.
TOPOLO-TRUCK
Box truck body kit manufacturer in China
TOPOLO-TRUCK is a unique technology solution company. We have a strong technical R&D team, advanced production factory and efficient service teams, which together build a solid foundation for development. As experts in refrigerated truck bodies, we provide design, material, manufacturing and packaging solutions.
Fast Assembly, High Efficiency Production
We are committed to making the building of refrigerated truck bodies simpler and easier. All CKD kits are produced on the high-precision production line of our factory and assembled and inspected by experienced engineers. After being transported to the destination by container, the operator can quickly assemble it according to the installation instructions we provide. The entire installation process does not require complex installation tools, only basic lifting equipment and tools such as electric drills, hammers, wrenches, etc. Even unskilled operators can complete the assembly task, and skilled operators can even achieve an efficient productivity of 1 person 1 day 1 vehicle.
High-quality Thermal Insulation Materials & Advanced Production Technology
- The insulation materials we use are CE certified and meet the environmental protection standards of countries and regions such as Europe, North America, and Australia.
- Using vacuum lamination technology, the skin and the insulation core material are composited under high pressure in a vacuum state.
- Lightweight and waterproof reinforcement materials are embedded inside the insulation material to enhance its structural strength.
Composite Panels for Refrigerated Trucks
We provide two types of thermal insulation composite panels: XPS （Extruded Polystyrene） and PU （Polyurethane）foam core sandwich panels. Purchasers can choose different specifications such as density and thickness according to application requirements.
XPS Insulation Panels
- Thermal insulation.
- Not easy to deform.
- Lightweight.
- Waterproof.
- Durable.
PU Insulation Panels
- Lightweight.
- Low thermal conductivity.
- Corrosion resistant.
- Waterproof.
- Compression resistant.
- Flame retardant.
New Materials, Mew technologies
We have developed a new type of thermoplastic FRP sheet – CFRT (Continuous Fiber Reinforced Thermoplastic) to replace the traditional thermosetting FRP sheet, or to mix the two, making the insulation panels more durable and lighter, and greatly reducing the manufacturing cost.
- Both sides are UV-resistant gel-coated FRP sheets.
- The outer side is made of FRP sheet and the inner side is made of CFRT sheet.
- Both sides are continuous fiber reinforced thermoplastic composite sheets.
Parts & Accessories
Optimize Packaging Solutions
In order to safely deliver the CKD kits to the destination and facilitate buyers to unload the goods simply and quickly, we have designed a reliable packaging solution for each batch of goods to ensure that they are not affected by sea water, rain, ice and snow during long-distance transportation, as well as bumps, collisions, extrusions and other problems during transportation.
Providing the Most Professional Solutions
- 20 years of experience in quantitative truck design and development.
- More than 100 manufacturing team.
- More than 10 international language service teams (English, Russian, French, Spanish, Portuguese, Arabic, German, Italian, Japanese, Korean).
- Cooperating with customers in more than 50 countries and regions.
Serving the Global Market
TOPOL-TRUCK is committed to providing high-quality service to every user in the international market. Our products are sold in Europe, North America, South America, the Middle East, Southeast Asia, Oceania, and Africa. We work closely with local distributors to provide regional solutions that meet the cultural, economic, and regulatory requirements of each market.
