EPDM Seals for Refrigerated Trucks and Trailers
Sealing strips are key components in refrigerated trucks, refrigerated trailers, and cold chain transportation equipment. High-quality sealing systems effectively prevent cold air leakage, reduce the load on refrigeration units, improve energy efficiency, and ensure the quality of goods transported.
DESCRIPTION

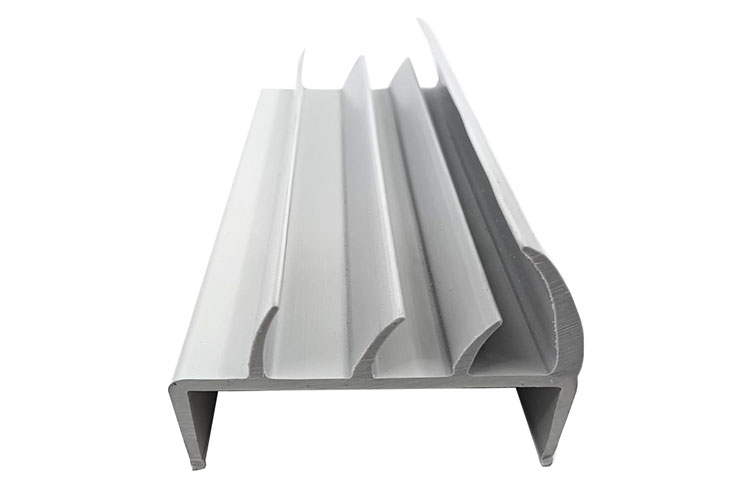

For refrigerated truck door manufacturing, multi-lip EPDM compression sealing strips are often the more ideal choice because they offer better durability, long-term elasticity, and stable sealing performance under frequent door opening and closing conditions.
Why Choose EPDM Sealing Strips?
- Excellent thermal insulation performance.
- Good airtightness and watertightness.
- UV and ozone resistance.
- Maintains flexibility at low temperatures.
- Strong anti-aging properties.
- Easy installation and replacement.
- Suitable for frequent door opening and closing applications.
Sealing Strip Performance Parameters
| Item | Specification |
|---|---|
| Material | EPDM (Ethylene Propylene Diene Monomer) |
| Structure Type | Solid / Sponge Foam / Co-extruded Composite |
| Hardness | 40~90 Shore A |
| Working Temperature | -50°C to +150°C |
| Standard Temperature Resistance | -40°C to +120°C |
| Tensile Strength | 8~15 MPa |
| Elongation at Break | 200%~500% |
| Compression Set | ≤25% |
| Density | 1.1~1.3 g/cm³ |
| Color | Black, grey, white, or customized |

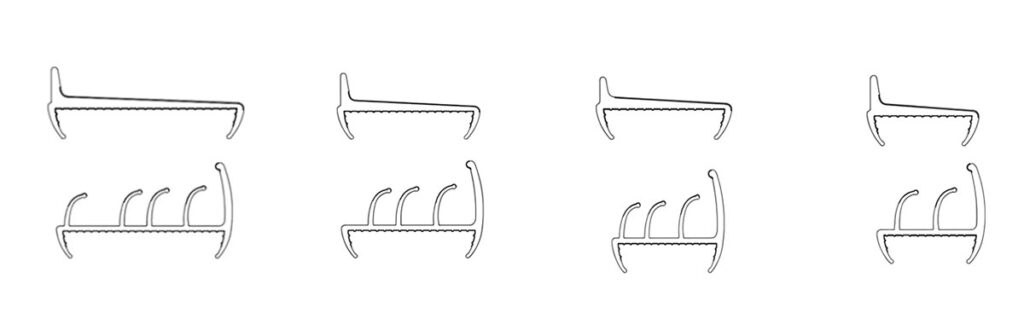

Types of Door Seals
Optimized design delivers a superior door opening and closing experience.
- Smooth compression when closing.
- Low resistance when opening.
- Not easily deformed with long-term use.
- Remains flexible even in low-temperature environments.
Easy and quick installation design
The weatherstripping can be quickly installed on the door frame or door panel edge without complex processing.
- It can be replaced individually when it ages.
- No need to disassemble the entire door.
- Reduces maintenance downtime.
- Reduces long-term maintenance costs.
