TOPOLO-TRUCK available with various configurations and options to meet specific needs, such as different door types, flooring options, and interior fittings.
Structure

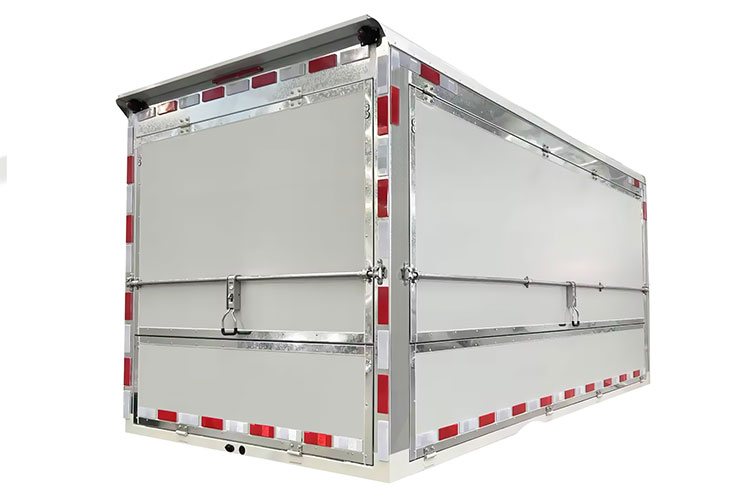

- Body frame: galvanized steel.

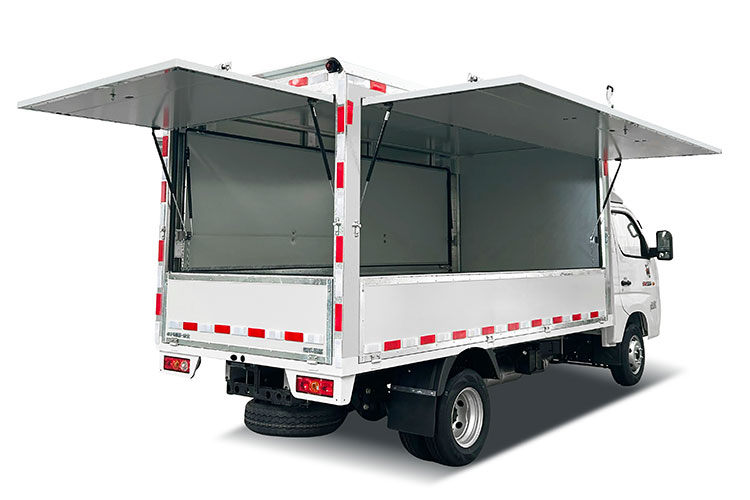

- Wing doors: Glossy aluminum panels.

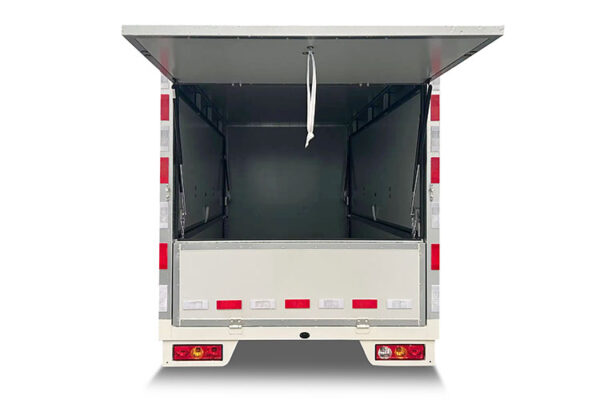

- Rear doors: Glossy aluminum panels.

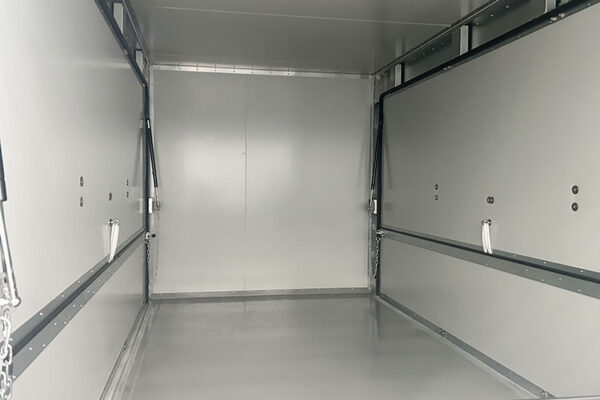

- Floor: Non-slip aluminum plates.
- Accessories: 304 stainless steel.
Expert in CKD/SKD Box Truck Bodies
TOPOLO-TRUCK specializes in providing solutions for various types of box truck bodies. We serve box truck manufacturers, wholesalers, modification factories, rental companies and DIY enthusiasts, etc.
Description
The objects transported by the Wing Truck mainly refer to those items that are loaded and unloaded by mechanized operations, as well as some high-end and valuable items. It has high efficiency and good safety performance, and is particularly suitable for medium and long-distance transportation. It is the main model in the current large-scale logistics and transportation industry, and is also an important model for the future development of logistics. The Wing Truck can be mainly used for the transportation and distribution of paper, home appliances, clothing, chemicals, beverages, food and other items. The Wing Truck has a unique body design, reasonable structure, beautiful appearance, and all kinds of performance indicators have reached the advanced level of similar products. It has the advantages of rainproof, dustproof, sunscreen, anti-theft, and corrosion resistance.
Body Size
| Body Size | Overall Length (m) | Overall Width (m) | Overall Height (m) | Cargo Length (m) | Cargo Width (m) | Cargo Height (m) | Cargo Capacity (tons) |
| Small (Light Duty) | 5.0-7.0 | 2.0-2.2 | 2.5-2.8 | 4.0-5.5 | 1.8-2.0 | 1.8-2.2 | 2-3 |
| Medium (Medium Duty) | 7.5-9.0 | 2.2-2.5 | 3.0-3.5 | 6.0-7.5 | 2.0-2.3 | 2.2-2.5 | 5-8 |
| Large (Heavy Duty) | 9.5-12.0 | 2.5-2.6 | 3.5- 4.0 | 8.0-10.0 | 2.3-2.5 | 2.5-2.8 | 10- 15 |
