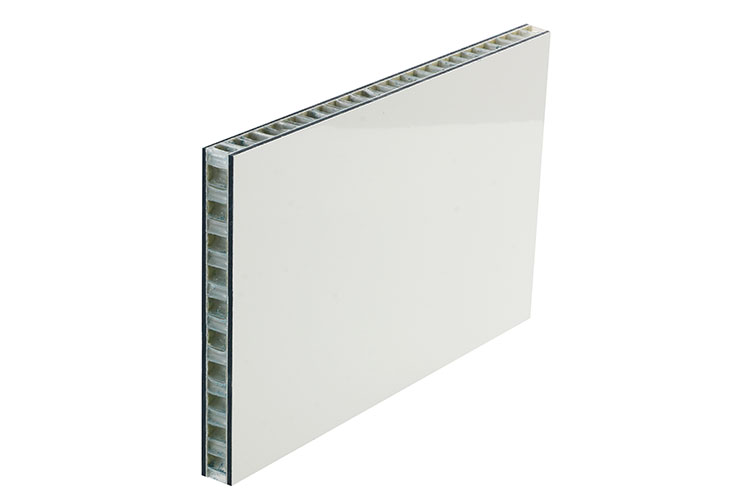

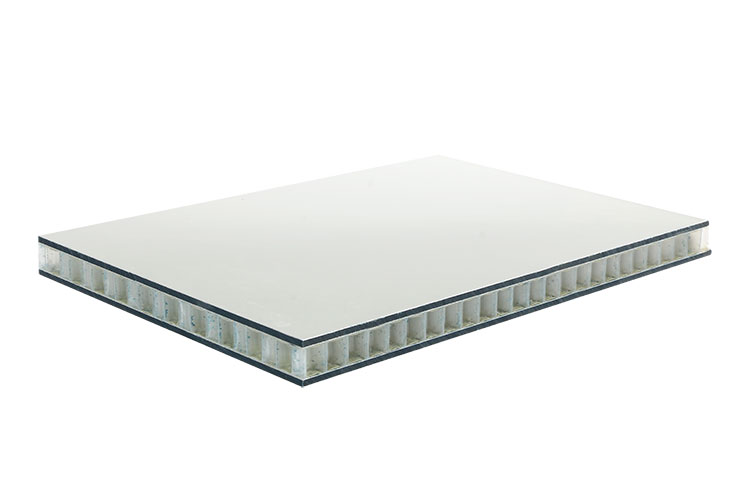

Specifications
- Facing: Aluminum composite panels. (Thickness: 1.0~6.0mm)
- Core Materials: PP (Polypropylene) honeycomb. (Density: 60~160kg/m³)
- Width: Max 2.6m.
- Length: Max 12m.
- Thickness: 10~50mm.
DESCRIPTION
What is ACM?

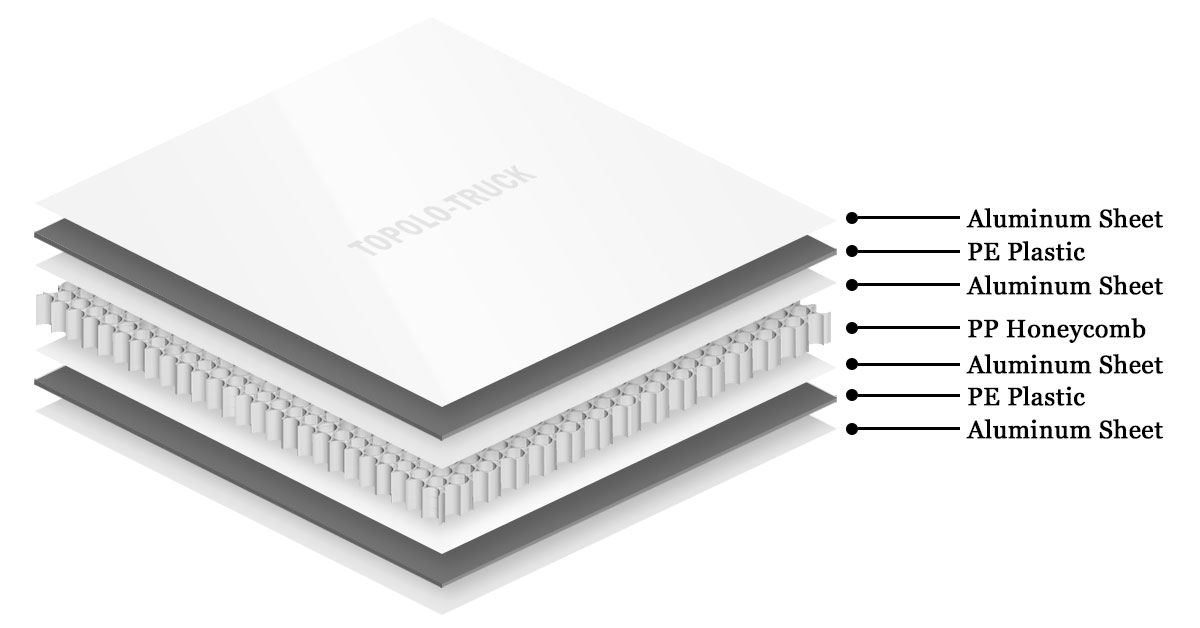

ACM (Aluminum Composite Panel) is a composite panel made of two layers of aluminum plates with a core material (such as polyethylene) sandwiched between them. Due to its excellent physical properties, it is used in the construction of box truck bodies.
Advantages of Using ACM (Aluminum Composite Panel) as the Facing for Polypropylene Honeycomb Panels
- Lightweight and Structural Optimization
Using aluminum composite panels as the outer layer of a honeycomb sandwich panel fully leverages the lightweight, strength, and aesthetic properties of aluminum. Combined with the lightweight and high-strength characteristics of the honeycomb core structure, this forms a composite material that significantly reduces the overall weight.
- Excellent Corrosion Resistance
The aluminum layer of the composite panel is treated to provide excellent weather resistance and corrosion protection, making it suitable for use in harsh environments. The honeycomb core layer adds additional strength support.
- Good Insulation Performance
The polypropylene honeycomb core has good thermal insulation properties. When paired with aluminum composite panels, it effectively enhances the thermal isolation ability of the composite panel, making it ideal for industries that require temperature control, such as refrigerated trucks and building facades.
Impact and Bending Resistance:
The high strength of the aluminum composite panel, combined with the advantages of the honeycomb structure, improves the material’s impact and bending resistance, making it more durable during transportation and usage.
- Processability and Customization
Aluminum composite panels can be customized with different surface treatments, colors, or functional modifications (such as UV resistance, antibacterial properties, etc.), while the honeycomb core can be tailored to different thicknesses and densities to meet various design requirements.
Expert in Box Body Composite Panels

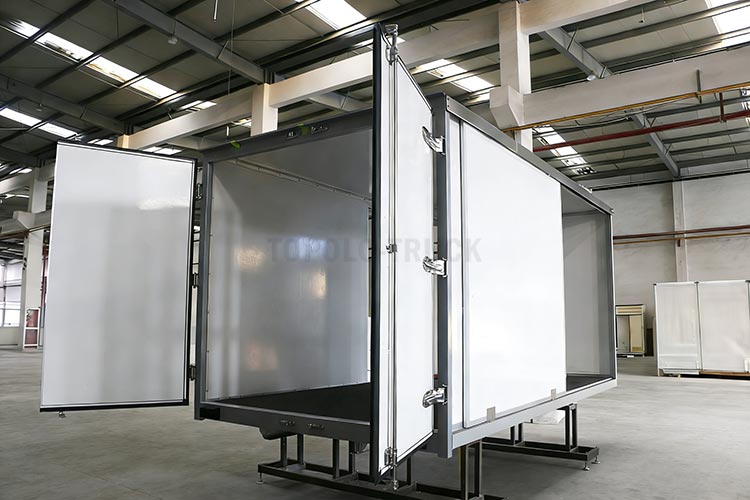

TOPOLO-TRUCK has developed a series of high-quality composite panels for box truck and trailer bodies. Our composite panels are designed to perfectly combine strength, quality, aesthetics and environmental protection requirements, which can help you improve the durability, safety and transportation efficiency of your trucks. We use industry-leading materials and technologies to carefully build and provide the best solutions for your vehicle projects, and provide high-quality products that meet strict standards and exceed customer expectations.
