Specifications

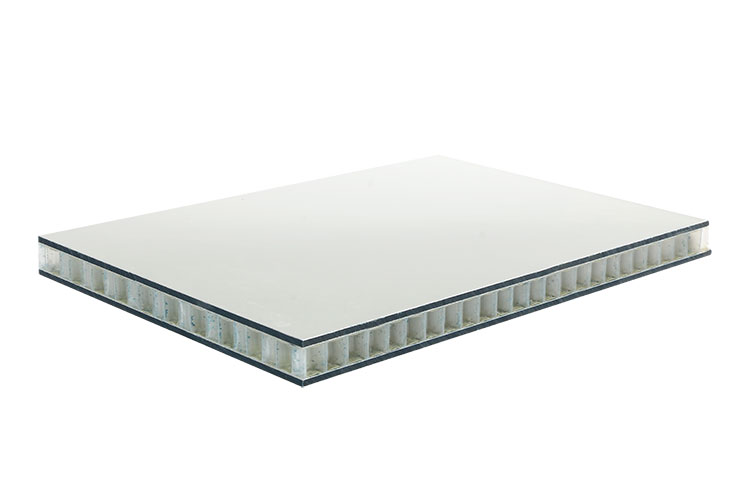

- Top Facing: Aluminum composite panels. (Thickness: 1.0~6.0mm)
- Core Materials: PP (Polypropylene) honeycomb. (Density: 60~160kg/m³)
- Bottom Facing: Aluminum composite panels. (Thickness: 1.0~6.0mm)
- Width: Max 2.6m.
- Length: Max 12m.
- Thickness: 5~120mm.
Main Features
- Easy to install.
- Lightweight and high strength.
- Durable.
- Strong impact resistance.
- Customizable surface color.
DESCRIPTION
Product Features
- Wear-resistant and anti-skid.
- High strength-to-weight ratio.
- Impact-resistant.
- Chemical-resistant.
- Easy to install and maintain.
Specifications
- Top Facing: Embossed CFRT (Continuous Fiber Reinforced Thermoplastic)
- Core Materials: PP (Polypropylene) honeycomb. (Density: 60~160kg/m³)
- Bottom Facing: Embossed CFRT (Continuous Fiber Reinforced Thermoplastic)
- Width: Max 2.8m.
- Length: Max 12m.
- Thickness: 5~120mm.
Expert in Truck Body Composite Panels
TOPOLO-TRUCK has developed a series of high-quality composite panels for box truck bodies. Our composite panels are designed to perfectly combine strength, quality, aesthetics and environmental protection requirements, which can help you improve the durability, safety and transportation efficiency of your trucks. We use industry-leading materials and technologies to carefully build and provide the best solutions for your vehicle projects, and provide high-quality products that meet strict standards and exceed customer expectations.
Materials and Applications
| Core | Facing | Applications |
| XPS (Extruded polystyrene) Foam | FRP Sheet, CFRT Sheet. | Refrigerated Trucks, Dry Freight Trucks. |
| PU (Polyurethane) Foam | FRP Sheet, CFRT Sheet. | Refrigerated Trucks |
| PET (Polyethylene Terephthalate) Foam | FRP Sheet, CFRT Sheet, Aluminum Sheet, ACP Panel. | Dry Freight Trucks |
| PVC (Polyvinyl chloride) Foam | FRP Sheet, CFRT Sheet, ACP Panel. | Refrigerated Trucks, Dry Freight Trucks. |
| PP (Polypropylene) Honeycomb | FRP Sheet, CFRT Sheet. | Dry Freight Trucks |
| HDPE(High-density Polyethylene) Plastic | Galvanized Steel Sheet, Aluminum Sheet. | Dry Cargo Trailers |
| Plywood | FRP Sheet, CFRT Sheet. | Dry Freight Trucks |
Note
- FRP: Fiberglass reinforced.
- CFRT: Continuous fiber reinforced thermoplastic.
- ACP: Aluminum Composite Panel.
Composite Panel Production Lines
We have multiple one-piece composite panel production lines that can meet vacuum adhesive composite and thermoplastic composite production. The panel size can be up to 12m long and 3.2m wide.
CNC Machining
The composite panels are processed into designed shapes at high speed and high precision on large CNC processing platforms, and the panels in the same batch can maintain consistent precision.
Accessories Services
Provide standard and non-standard parts to meet special application requirements. Including sheet metal processing, laser welding, aluminum profile processing, metal casting processing, etc.
Truck Body CKD/SKD Services
TOPOLO-TRUCK provides box truck bodies in the form of CKD (Completely Knock Down) and SKD (Semi-Knocked Down), and provides optimized design services.
