A cube truck is designed for transporting goods in a fully enclosed, box-shaped cargo area, which looks like a “cube” (hence the name). TOPOLO-TRUCK provides customized Pantech truck body solutions for a wide range of global chassis brands, including Isuzu, Toyota, Hino, Mitsubishi Fuso, Nissan, Hyundai, Kia, Foton, JAC Motors, Dongfeng Motor, FAW Group, Sinotruk, Tata Motors, Ashok Leyland, and more.
With flexible manufacturing capabilities and global export experience, we support CKD, SKD, and CBU delivery modes to meet different market requirements, import policies, and operational needs.
DESCRIPTION
As a professional box truck body manufacturer, TOPOLO-TRUCK continuously develops new materials and new processes in the field of truck lightweighting, providing reliable design and manufacturing solutions for truck manufacturers and dealers around the world. Under the premise of ensuring transportation safety and body structural strength, the body weight is minimized to improve transportation efficiency and economic benefits.
Make Assembly and Installation More Efficient
Based on a modular design, these truck bodies can be assembled quickly.
- Low labor requirement: Only a few operators are needed to assemble one body.
- Simple installation tools: Basic equipment such as a small lifting device, screw gun, and hammer is sufficient for installation.
- Fast installation speed: Experienced technicians can complete the assembly of one body within a few hours.
- Easy operation for non-professionals: With simple training, even personnel without technical background can perform the installation.
- Low site requirements: Installation can be carried out in both indoor and outdoor environments, including simple workshops or professional facilities.
Choose Your Pantech Truck Body Assembly Solution
01. CKD (Completely Knocked Down)
All components are supplied as individual parts and shipped unassembled. Final assembly is carried out in the destination country.
- Ideal for markets with high import tariffs on fully built units.
- Reduces shipping volume and logistics cost.
- Suitable for local assembly plants and long-term production planning.
02. SKD (Semi Knocked Down)
The truck body is partially assembled before shipment, with key modules pre-installed.
- Faster and easier assembly compared to CKD
- Balanced solution between cost efficiency and assembly workload
- Suitable for distributors with limited assembly capabilities
03. CBU (Completely Built Unit)
Fully assembled Pantech truck body delivered ready for installation or immediate use.
- Plug-and-play solution with minimal on-site work.
- Ensures consistent factory quality and performance.
- Ideal for customers requiring quick deployment and convenience.

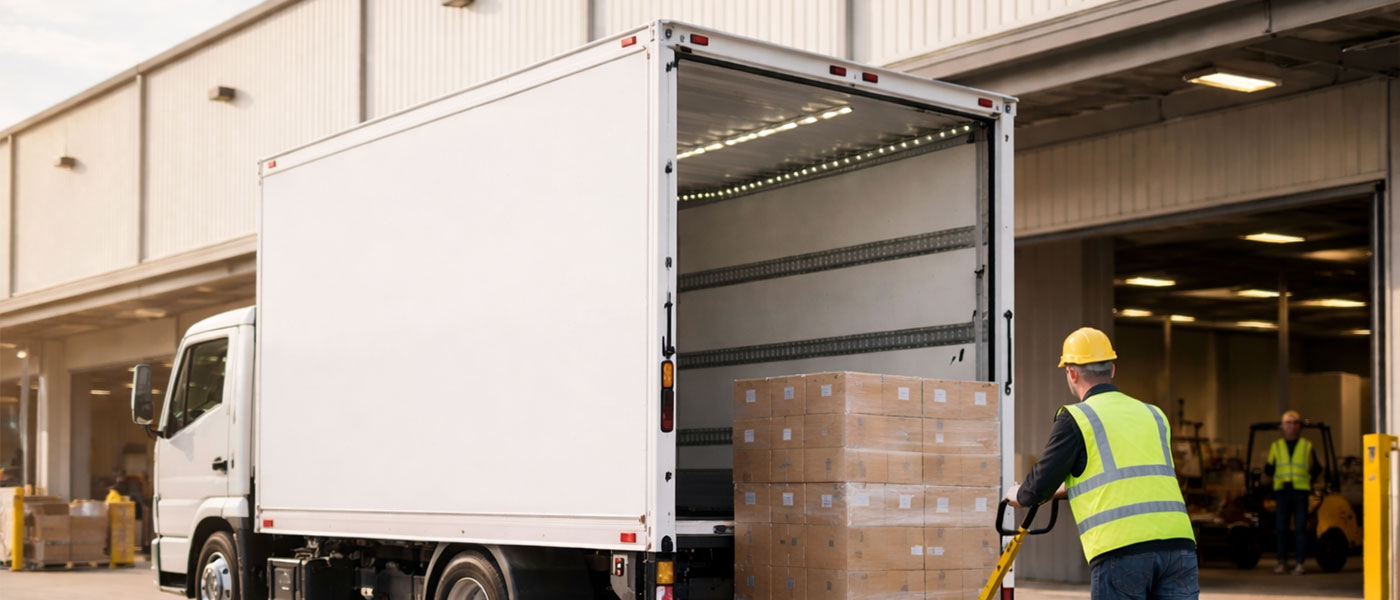

Wide Range of Applications
TOPOLO-TRUCK provides customized dry cargo truck bodies for various industries. We serve the transportation of various non-liquid and non-refrigerated goods:
- Retail: Transportation of various daily necessities, clothing, electronic products, etc.
- Manufacturing: Transportation of raw materials, semi-finished products and finished products.
- Food and Beverage: Suitable for dry food that does not require refrigeration, such as canned food, grains, snacks, etc.
- Paper Products and Printing: Transportation of paper, printing, packaging materials, etc.
- Furniture and Household Goods: Transportation of furniture, home decorations, kitchen supplies, etc.
- Auto Parts: Transportation of auto parts and accessories.
- E-commerce: Delivery of online shopping orders.
- Industrial Equipment and Materials: Transportation of industrial equipment, tools, construction materials, etc.
- Stationery and Office Supplies: Transportation of office supplies, school supplies, stationery, etc.
Box Body Structure (Customizable)
01. Common Box Body Dimensions
| Length (mm) | Width (mm) | Height (mm) |
|---|---|---|
| 2340 | 1810 | 1900 |
| 2650 | 1810 | 1900 |
| 2940 | 1810 | 1900 |
| 3220 | 1900 | 1950 |
| 3250 | 1810 | 1950 |
| 3340 | 1810 | 1950 |
| 3655 | 1810 | 1950 |
| 3800 | 1900 | 2000 |
| 4230 | 1900 | 2000 |
| 4750 | 2050 | 2100 |
| 4880 | 2130 | 2130 |
| 4920 | 1900 | 2000 |
| 5150 | 2050 | 2100 |
| 5200 | 2050 | 2100 |
| 5750 | 2170 | 2300 |
| 5750 | 2170 | 2300 |
| 6150 | 2050 | 2300 |
| 6200 | 2300 | 2300 |
| 6750 | 2300 | 2400 |

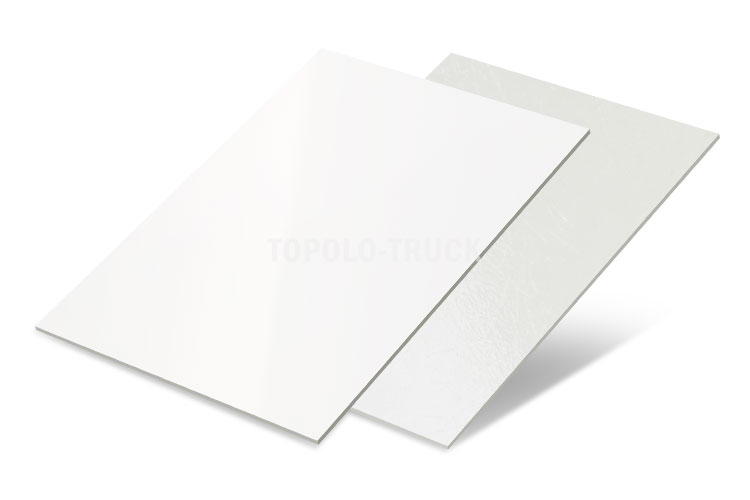

Common Box Body Materials
| Material Type | Application |
|---|---|
| Flat fiberglass reinforced honeycomb panel | Wall panels, roof panels |
| Anti-slip fiberglass reinforced honeycomb panel | Floor panels |
| Fiberglass reinforced PET foam sandwich panel | Wall panels, roof panels |
| Fiberglass reinforced plywood panel | Wall panels, roof panels, floor panels |
| Fiberglass reinforced XPS foam sandwich panel | Wall panels, roof panels, floor panels |
| Fiberglass reinforced MPP foam sandwich panel | Wall panels, roof panels |
| Fiberglass reinforced sheet | Wall panels, roof panels |
The weight of the truck body is reduced by using high-strength, low-density materials while ensuring structural strength and durability. We have developed new high-strength composite materials to replace traditional metals and wood, which greatly reduces the weight of the body and reduces operating costs. Most of these new composite materials are recyclable, which promotes the development of a sustainable economy.
Common Box Body Accessories
- Hinges: Stainless Steel, Aluminum Alloy.
- Door Frames: Stainless Steel, Aluminum Alloy, Galvanized Steel.
- Door Locking Systems: Stainless Steel (Flush-mount handles; Exposed-rod handles).
- Door Seals: PVC + EPDM.
- Door Retainers: Stainless Steel.
- Connecting Trim Profiles: Extruded Aluminum.
- Kick Plates: Checkered Aluminum Alloy Plate; Corrugated Aluminum Alloy Plate.
- Corner Caps: Stainless Steel, Aluminum Alloy.
- Track Rails: Stainless Steel, Galvanized Steel (E-type, L-type, F-type).
- Subframes: Galvanized Steel, Aluminum Alloy (with adjustable crossmembers).
- Other Custom Options: Signal Lights, Liftgates, Cab Roof Air Deflectors, Rubber Bumpers, Step Ladders, etc.

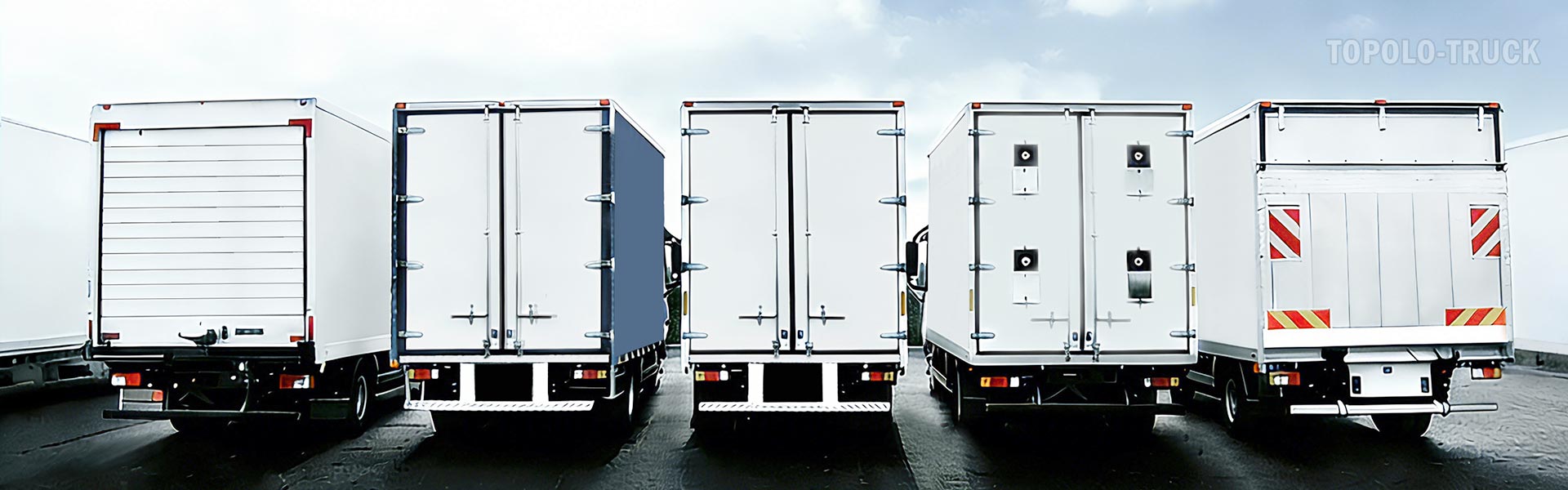

Multiple Design Styles
Our design team provides customized box body design solutions in a variety of styles to meet diverse application requirements. In addition, we are highly willing to optimize your design proposals. From practical functionality to aesthetic appearance, we are committed to optimizing structure, performance, and manufacturability, thereby delivering tailored solutions for different operational needs across various industries.
Roll Up Doors
- Pull up and down quickly.
- Saves rear opening space
Rear Swing Doors
- Wide opening angle (up to 270°)
- Simple structure with easy maintenance

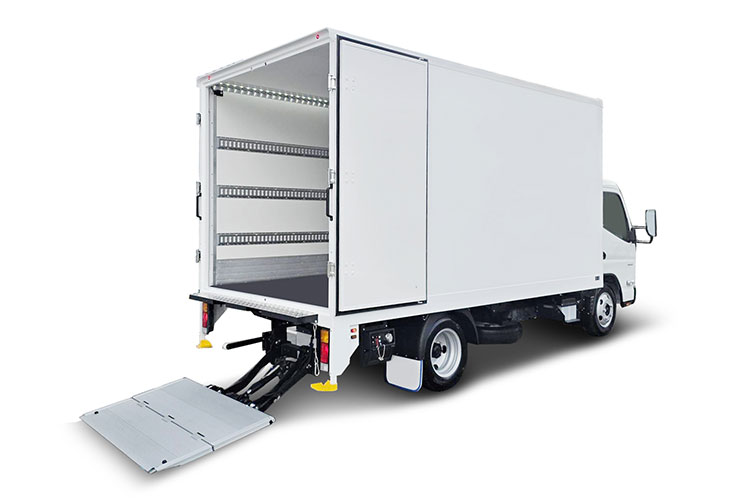

Top-Hinged Doors
- Opens upward to form a rain canopy.
- Integrated with a cantilever tail lift.
Providing the Most Professional Solutions
- Cooperating with customers in more than 50 countries and regions.
- 20 years of experience in quantitative truck design and development.
- More than 100 manufacturing team.
- More than 10 international language service teams (English, Russian, French, Spanish, Portuguese, Arabic, German, Italian, Japanese, Korean).
Optimize Packaging Solutions
In order to safely deliver the CKD kits to the destination and facilitate buyers to unload the goods simply and quickly, we have designed a reliable packaging solution for each batch of goods to ensure that they are not affected by sea water, rain, ice and snow during long-distance transportation, as well as bumps, collisions, extrusions and other problems during transportation.
Serve The Global Market
TOPOLO-TRUCK is committed to delivering high-quality services to customers across global markets. Our products are exported to Europe, North America, South America, the Middle East, Southeast Asia, Oceania, and Africa, reaching a wide range of industries and applications. We work closely with local distributors and partners to provide solutions that are fully aligned with the cultural, economic, and regulatory requirements of each market. By combining our international expertise with localized support, we ensure that every customer receives reliable, tailored, and high-performance truck and trailer solutions, no matter where they are in the world.
