TOPOLO-TRUCK provides highly adaptable and customized mobile medical trailers for the healthcare industry, assisting clients in efficiently implementing their medical trailer projects through flexible product solutions. We offer pre-assembled trailers or pre-assembled kits, allowing clients to independently add internal facilities such as diagnostic equipment, treatment devices, and drug storage units according to their actual medical functional needs, maximizing the fulfillment of personalized medical service scenarios.
Customized Services
- Design Services
- Customized Materials
- Customized Dimensions
- Customized Accessories
What is a Mobile Medical Trailer?

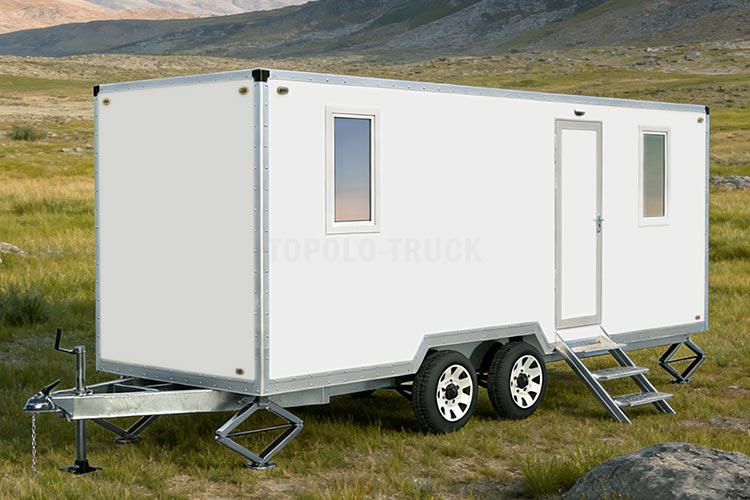

A mobile medical trailer is a mobile medical service carrier built on a sturdy truck chassis and a customized enclosed box. It can carry various medical equipment through flexible modification, realizing the extension of “mobile, lightweight, and convenient” medical services. TOPOLO-TRUCK’s mobile medical trailers adopt an “empty box customization” mode, reserving sufficient independent modification space for customers and adapting to multiple medical functions such as physical examinations, diagnosis and treatment, vaccination, and emergency rescue.
What Convenience Do Mobile Medical Trailers Bring?
☑ High Mobility, Full Coverage
It can quickly respond to areas that are difficult to cover by fixed medical points, such as grassroots communities, remote areas, and disaster sites, realizing “door-to-door” medical services.
☑ Controllable Cost, High Deployment Efficiency
Compared with the high construction cost and long cycle of fixed medical buildings, mobile medical trailers have the advantage of “ready-to-use after modification”, greatly reducing initial investment and time costs.
☑ Wide Adaptability, Unimpeded Traffic
Based on lightweight box and high-strength chassis design, it can adapt to different road conditions and easily drive into complex areas such as rural roads and event venues.
Application Scenarios of Mobile Medical Trailers
☑ Medical Services in Remote Areas
Providing basic medical services such as routine physical examinations, chronic disease follow-ups, and medicine distribution for remote rural areas and communities.
☑ Emergency Medical Rescue
Rushing to the scene quickly to set up temporary diagnosis and treatment points in the event of disasters such as earthquakes and floods, and carrying out wounded treatment and epidemic prevention and disinfection work.
☑ Medical Support for Large-scale Events
Providing medical support such as first-aid treatment and health monitoring at the scene of large-scale events such as marathons, concerts, and exhibitions.
☑ Specialized Medical Screening
Carrying professional equipment to carry out special medical services such as mobile ophthalmic examinations, dental diagnosis and treatment, and tumor screening.
☑ Vaccination and Cold-chain Transportation
Adapting to the insulated box design, it is used for vaccine transportation and temporary vaccination site construction, ensuring the safety of vaccine storage.

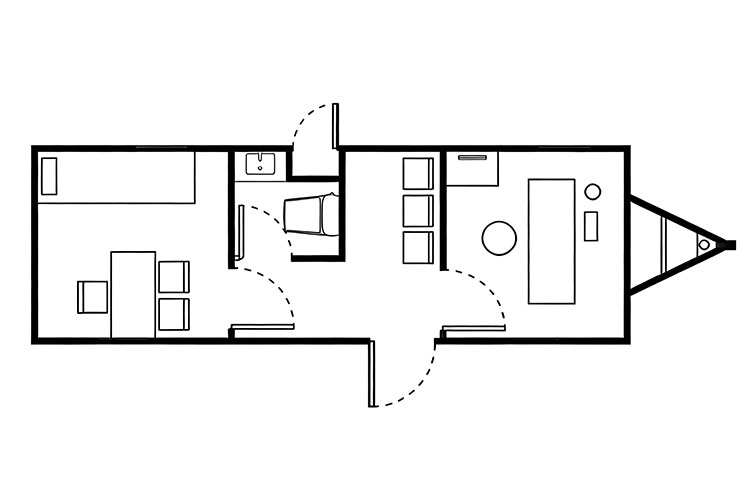

Dedicated Design Services
A professional vehicle body design team provides full-process customized design services from requirement analysis to structural modeling. By integrating the specific requirements of medical applications, key parameters such as interior space layout, door and window positioning, and load distribution are optimized, ensuring that the trailer meets medical equipment installation standards while delivering excellent mobility and road performance.
Box Body Sizes
TOPOLO-TRUCK supports full-size customization. The following are common standard sizes (length, width and height, as well as internal space can be adjusted according to customer needs).
| Trailer Type | Overall Length (mm) | Overall Width (mm) | Overall Height (mm) | Axle Configuration |
|---|---|---|---|---|
| Compact | 3,000 – 4,500 | 2,000 – 2,300 | 2,400 – 2,600 | Single axle |
| Medium | 5,000 – 6,500 | 2,200 – 2,400 | 2,600 – 2,800 | Single / Tandem axle |
| Large | 7,000 – 9,000 | 2,300 – 2,500 | 2,800 – 3,200 | Tandem / Triple axle |
| Extra Large | 9,000 – 12,000 | 2,400 – 2,500 | 3,000 – 3,500 | Triple axle |
Structure Materials
- Thermal insulation
- Lightweight
- Durable
Box Panels
FRP skin + insulated foam core
- Lightweight design reduces chassis load.
- Excellent thermal insulation performance, suitable for scenarios such as vaccine cold chain and constant temperature diagnosis and treatment.
- Corrosion-resistant and easy to clean, meeting the hygiene standards of medical environments.
Chassis
- High-strength galvanized steel or high-quality painted steel chassis frame.
- Excellent load-bearing capacity and fatigue resistance.
- Suitable for long-distance road transport and complex operating environments.
- Can be matched with single-axle, dual-axle, or multi-axle structures.
