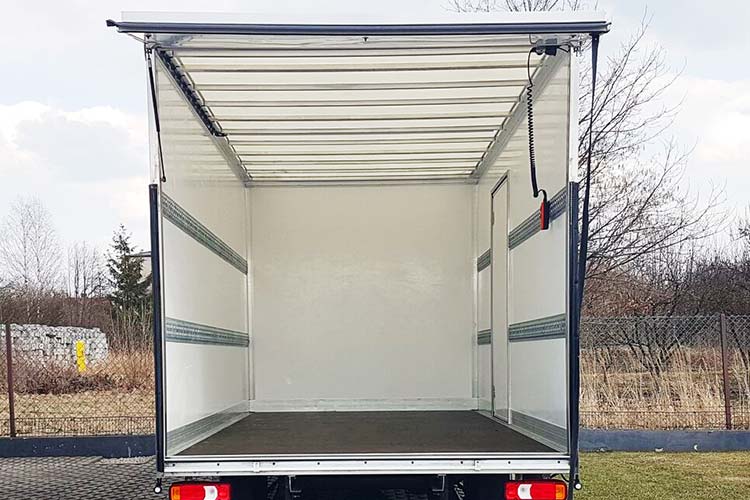

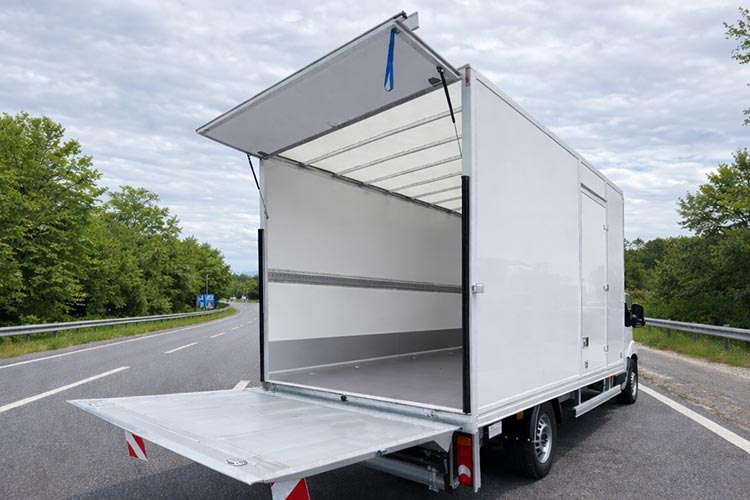

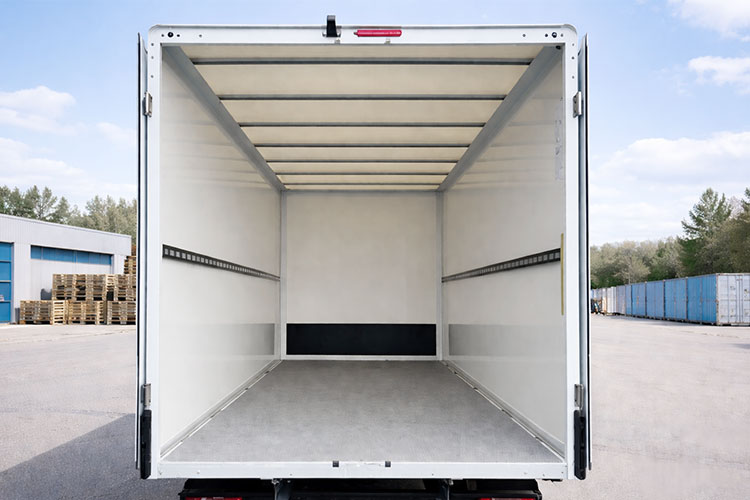

Dry Cargo Box Truck Body Wall Panels
In an era where vehicle lightweighting, durability, and environmental friendliness are paramount, the continuous advancement of dry cargo box manufacturing technology has paved the way for the widespread adoption of new composite materials. Moving beyond one-size-fits-all material choices, vehicle builders can now select the most suitable solutions tailored to their specific application needs. TOPOLO-TRUCK’s series of fiberglass-reinforced plastic (FRP) panel materials are engineered to deliver enhanced manufacturing efficiency and superior operational economic benefits for builders worldwide.
Why choose FRP Sheets?
To fully understand the value of these products, we first focus on FRP (Fiber Reinforced Plastic) sheets — a high-performance composite material composed of high-strength glass fiber and high-quality resin matrix. As a core material for dry cargo box truck body wall panels, FRP composites demonstrate outstanding advantages.
Compared with traditional metal plates and wooden panels, FRP sheets have significantly lower density while maintaining high structural strength. Using FRP wall panels effectively reduces the overall weight of the truck body, lowers fuel consumption during daily operation, increases effective payload, and helps operators improve transport efficiency and profitability.
FRP composite material has a dense, non-porous surface and integral molding structure, which completely blocks water penetration. It will not absorb moisture, rust, corrode or decay even in long-term humid, rainy or water-washing environments, effectively protecting cargo dryness and body structural stability.
The material features low thermal expansion coefficient and strong flexural resistance. It is not prone to warping, twisting or deformation under extreme temperature differences, long-term wind pressure, stacking pressure or external impact. The truck body maintains flatness and aesthetics throughout its service life.
FRP sheets are highly resistant to acid, alkali, salt, oil stains and ultraviolet radiation. They do not rust like steel, rot like wood or degrade easily like ordinary plastics, ensuring stable performance and long service life even under harsh outdoor working conditions.
With a smooth and hard surface, FRP panels resist dirt adhesion and are easy to wash and disinfect. They do not require frequent painting, anti-rust treatment or repair, greatly reducing later maintenance cost and downtime.
Practical Structural Applications of FRP Sheets in Wall Panels
TOPOLO-TRUCK offers specialized FRP-based wall panel structures, each optimized for distinct application scenarios and performance requirements.
FRP Siding (Single-Layer FRP Panel)
A single thick FRP sheet (typically 3-6mm thick) supported by an internal frame of metal (aluminum or steel) or wood.
Key Features
- Simple structure.
- Lightweight.
- Cost-effective.
- Easy installation and repair.
Fiberglass-Reinforced PET Foam Core Sandwich Panel
Symmetrical composite structure consisting of two outer FRP sheets and a middle core of PET foam (10-50mm thick).
Key Features
- Medium-duty cargo transport (e.g., food, pharmaceuticals, precision equipment) that requires both lightweighting and temperature stability.
- Perfect for eco-conscious fleets seeking sustainable solutions.
Fiberglass-Reinforced mpp Foam Core Sandwich Panel
Engineered with two high-strength fiberglass skins and an advanced MPP (Modified Polypropylene) foam core, offering a balance between rigidity and resilience.
Key Features
- Lightweight with enhanced structural stability.
- Superior impact resistance and energy absorption.
- Excellent thermal insulation performance.
- Moisture-resistant and corrosion-resistant.
- More durable than traditional foam core materials.
Fiberglass-Reinforced Polypropylene Honeycomb Panel
Two fiberglass outer layers bonded to a polypropylene (PP) honeycomb core (15-60mm thick), forming a high-strength, lightweight composite.
Key Features
- Ultra-lightweight structure.
- Excellent water resistance.
- High toughness and impact resistance.
- Fully recyclable material system.
Fiberglass-Reinforced Plywood
Two fiberglass surface layers laminated onto a waterproof plywood core (12-25mm thick), combining the strength of wood with the protection of FRP.
Key Features
- High structural strength.
- Strong load-bearing capacity.
- Cost-effective solution.
One-Stop Solution for Dry Cargo Box Truck Body
We offer CKD and SKD solutions for wall panels, flooring, door panels, roof panels, and other kits. We support modular production and rapid assembly to help you shorten manufacturing cycles, improve production consistency, reduce overall costs, and quickly build lightweight, durable, and cost-effective high-quality dry cargo van bodies.
