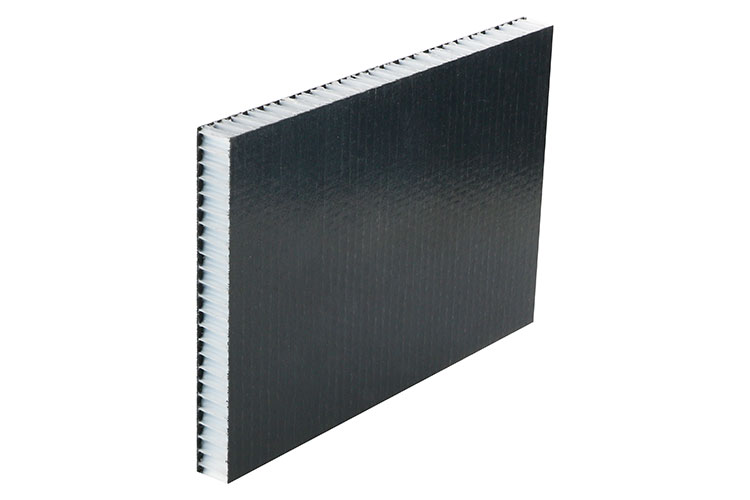

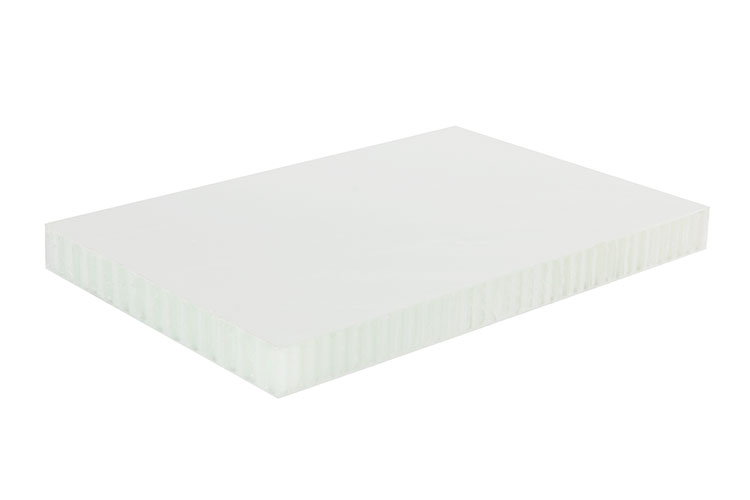

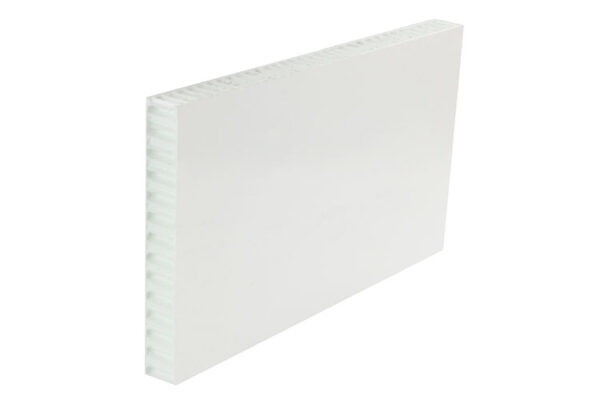

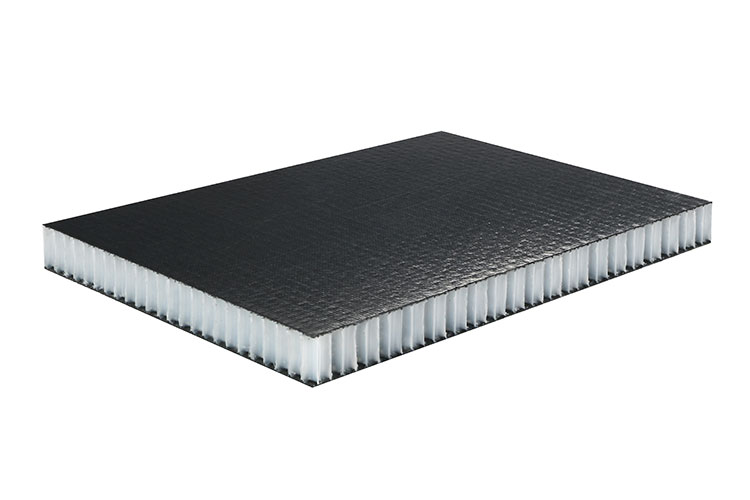

Thermoplastic Honeycomb Composite Panels for Light Trucks

Thermoplastic Honeycomb Composite Panels for Light Trucks - Image 3

Thermoplastic Honeycomb Composite Panels for Light Trucks - Image 4

Thermoplastic honeycomb composite panels are sandwich panels with CFRT (continuous fiber reinforced thermoplastic) composite sheets on the surface. Since no glue is used during the processing, the bonding between the layers is tighter and the structure is more stable. Our thermoplastic honeycomb composite panels are designed to meet the stringent requirements of modern transportation and are designed to provide unparalleled quality and performance for your light truck applications.

Product Features

Impact-resistant.
Corrosion-resistant.
Easy to process.
High structural strength.
Lower cost.

Specifications

Top Facing: CFRT Sheet. (Thickness: 0.7~2.0mm)
Core Materials: PP (Polypropylene) honeycomb. (Density: 60~160kg/m³)
Bottom Facing: CFRT Sheet. (Thickness: 0.7~2.0mm)
Width: Max 3.2m.
Length: Max 12m.
Thickness: 10~150mm.

Professional thermoplastic honeycomb panel manufacturer

We can also provide different surface treatments for thermoplastic PP honeycomb panels to meet different application requirements, such as UV resistance, anti-slip, lamination, painting, etc. We have an advanced fully automatic thermoplastic honeycomb panel production line and are currently the largest and most technologically advanced producer in China.

Category: Truck Body Panels

Expert in Truck Body Composite Panels

TOPOLO-TRUCK has developed a series of high-quality composite panels for box truck bodies. Our composite panels are designed to perfectly combine strength, quality, aesthetics and environmental protection requirements, which can help you improve the durability, safety and transportation efficiency of your trucks. We use industry-leading materials and technologies to carefully build and provide the best solutions for your vehicle projects, and provide high-quality products that meet strict standards and exceed customer expectations.

Materials and Applications

Core	Facing	Applications
XPS (Extruded polystyrene) Foam	FRP Sheet, CFRT Sheet.	Refrigerated Trucks, Dry Freight Trucks.
PU (Polyurethane) Foam	FRP Sheet, CFRT Sheet.	Refrigerated Trucks
PET (Polyethylene Terephthalate) Foam	FRP Sheet, CFRT Sheet, Aluminum Sheet, ACP Panel.	Dry Freight Trucks
PVC (Polyvinyl chloride) Foam	FRP Sheet, CFRT Sheet, ACP Panel.	Refrigerated Trucks, Dry Freight Trucks.
PP (Polypropylene) Honeycomb	FRP Sheet, CFRT Sheet.	Dry Freight Trucks
HDPE(High-density Polyethylene) Plastic	Galvanized Steel Sheet, Aluminum Sheet.	Dry Cargo Trailers
Plywood	FRP Sheet, CFRT Sheet.	Dry Freight Trucks

Note

FRP: Fiberglass reinforced.
CFRT: Continuous fiber reinforced thermoplastic.
ACP: Aluminum Composite Panel.

Composite Panel Production Lines

We have multiple one-piece composite panel production lines that can meet vacuum adhesive composite and thermoplastic composite production. The panel size can be up to 12m long and 3.2m wide.

**Vacuum Adhesive Composite Production Line**

**Thermoplastic Composite Production Line**

CNC Machining

The composite panels are processed into designed shapes at high speed and high precision on large CNC processing platforms, and the panels in the same batch can maintain consistent precision.

Accessories Services

Provide standard and non-standard parts to meet special application requirements. Including sheet metal processing, laser welding, aluminum profile processing, metal casting processing, etc.

Truck Body CKD/SKD Services

TOPOLO-TRUCK provides box truck bodies in the form of CKD (Completely Knock Down) and SKD (Semi-Knocked Down), and provides optimized design services.
