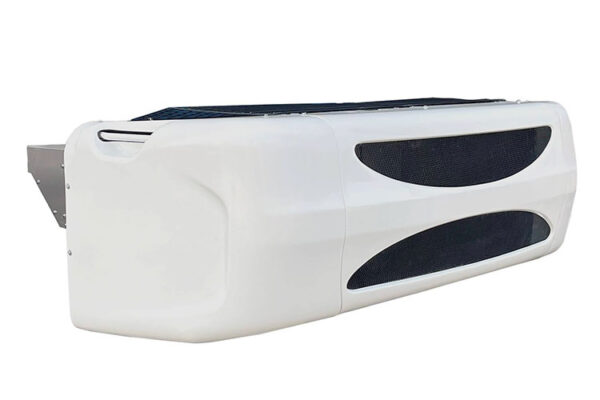

The refrigeration unit of the refrigerated truck is used to control the temperature inside the box.
Technical Parameters
- Applicable box volume: 45-60m³.
- Refrigerant: R404A. (Charging: 5.3kg)
- Refrigeration capacity: engine 0℃/9600w. (-20℃/5300w)
- Backup power: 0℃/8800w. (-20℃/4840w)
- Backup battery voltage: AC380V/50Hz/3PH; AC220V/60Hz/3PH.
- Unit voltage: DC12V.
- Compressor displacement: 466cc.
- Evaporative air volume: 2580m³/h.
- Defrost: automatic defrost (heat defrost) and manual forced defrost.
- Optional: remote data logging; remote control function.
