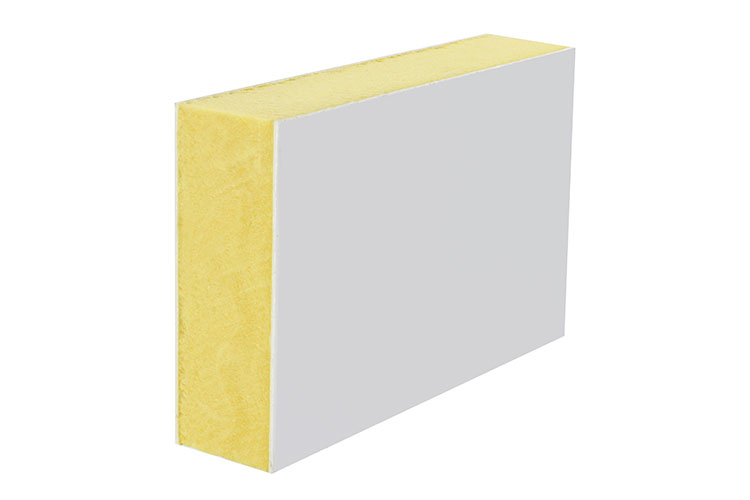

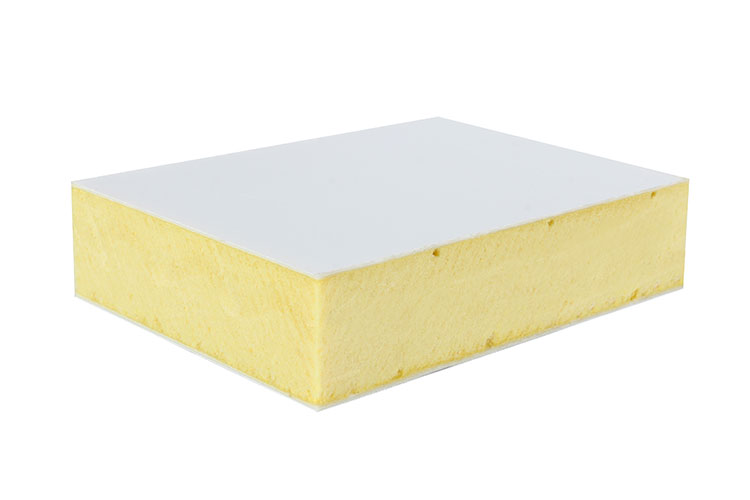

With our continuous fiberglass facing XPS foam insulation panels, you can ensure that your refrigerated truck bodies maintain perfect temperature conditions. This panel structure combines the high strength of CFRT materials with the excellent thermal insulation properties of XPS foam. Designed to provide excellent thermal efficiency and durability, these panels are the first choice for high-performance refrigerated transportation.

Panel Advantages

  • Thermal insulation.
  • Good weather resistance.
  • Long service life.
  • Lightweight and high strength.

Specifications

  • Top Facing: CFRT sheet. (Thickness: 0.7~2.0mm)
  • Core Materials: XPS (Extruded Polystyrene) foam. (Density: 35~50kg/m³)
  • Bottom Facing: CFRT sheet. (Thickness: 0.7~2.0mm)
  • Width: Max 2.8m.
  • Length: Max 12m.
  • Thickness: 10~150mm.
Category:

Description

Expert in Truck Body Composite Panels

TOPOLO-TRUCK has developed a series of high-quality composite panels for box truck bodies. Our composite panels are designed to perfectly combine strength, quality, aesthetics and environmental protection requirements, which can help you improve the durability, safety and transportation efficiency of your trucks. We use industry-leading materials and technologies to carefully build and provide the best solutions for your vehicle projects, and provide high-quality products that meet strict standards and exceed customer expectations.


Materials and Applications

Core Facing Applications
XPS (Extruded polystyrene) Foam FRP Sheet, CFRT Sheet. Refrigerated Trucks, Dry Freight Trucks.
PU (Polyurethane) Foam FRP Sheet, CFRT Sheet. Refrigerated Trucks
PET (Polyethylene Terephthalate) Foam FRP Sheet, CFRT Sheet, Aluminum Sheet, ACP Panel. Dry Freight Trucks
PVC (Polyvinyl chloride) Foam FRP Sheet, CFRT Sheet, ACP Panel. Refrigerated Trucks, Dry Freight Trucks.
PP (Polypropylene) Honeycomb FRP Sheet, CFRT Sheet. Dry Freight Trucks
HDPE(High-density Polyethylene) Plastic Galvanized Steel Sheet, Aluminum Sheet. Dry Cargo Trailers
Plywood FRP Sheet, CFRT Sheet. Dry Freight Trucks

Note

  • FRP: Fiberglass reinforced.
  • CFRT: Continuous fiber reinforced thermoplastic.
  • ACP: Aluminum Composite Panel.

Composite Panel Production Lines

We have multiple one-piece composite panel production lines that can meet vacuum adhesive composite and thermoplastic composite production. The panel size can be up to 12m long and 3.2m wide.

Vacuum Adhesive Composite Production Line
Thermoplastic Composite Production Line

CNC Machining

The composite panels are processed into designed shapes at high speed and high precision on large CNC processing platforms, and the panels in the same batch can maintain consistent precision.


Accessories Services

Provide standard and non-standard parts to meet special application requirements. Including sheet metal processing, laser welding, aluminum profile processing, metal casting processing, etc.


Truck Body CKD/SKD Services

TOPOLO-TRUCK provides box truck bodies in the form of CKD (Completely Knock Down) and SKD (Semi-Knocked Down), and provides optimized design services.
