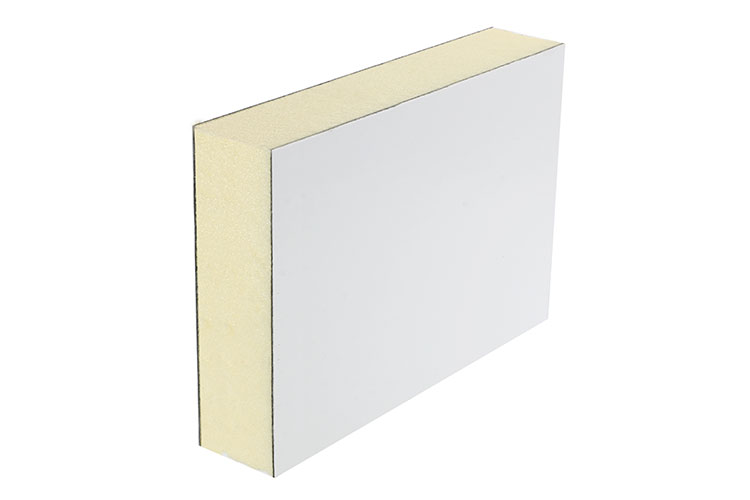

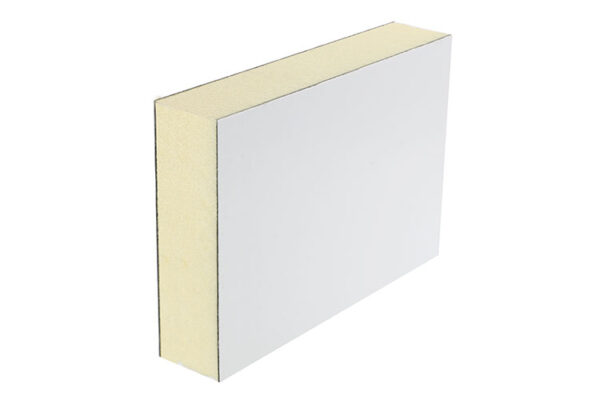

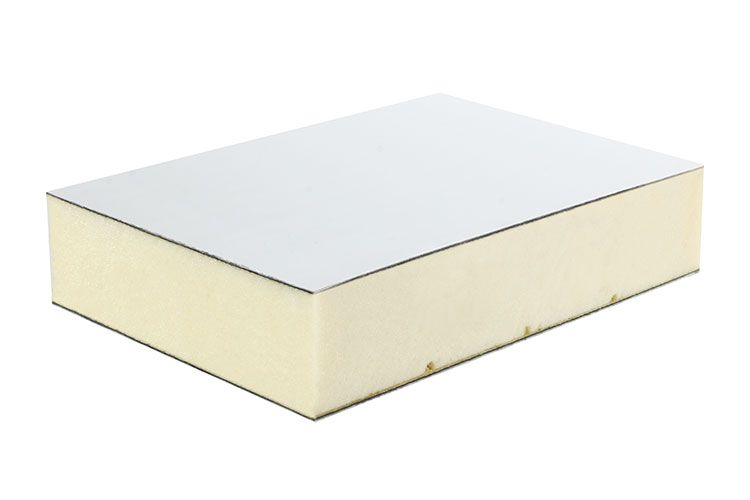

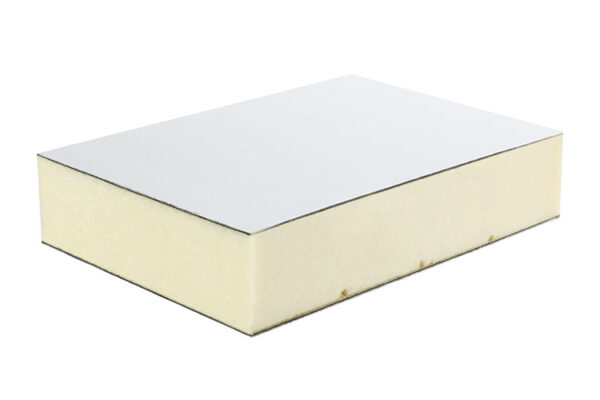

Continuous Fiber Facing Polyurethane Insulation Panels for Reefer Trucks

Continuous Fiber Facing Polyurethane Insulation Panels for Reefer Trucks - Image 3

Continuous Fiber Facing Polyurethane Insulation Panels for Reefer Trucks - Image 4

The outer layer of the continuous fiber facing polyurethane insulation panel is made of continuous reinforced fiber thermoplastic material (CFRT) and the inner layer is made of polyurethane (PU) material. This sandwich structure combines the strength of CFRT with the lightweight insulation of PU foam. Common refrigerated trucks are mostly made of GRP PU sandwich panels. As its alternative, the continuous fiber facing polyurethane insulation panel has the same high impact strength, but its own weight is lighter, and the construction cost will be greatly reduced.

Main Features

Impact resistant.
Thermal insulation.
Waterproof and moisture resistant.
Lightweight and high strength.
Easy to clean.

Specifications

Top Facing: CFRT sheet. (Thickness: 0.7~2.0mm)
Core Materials: PU (Polyurethane) foam. (Density: 28~50kg/m³)
Bottom Facing: CFRT sheet. (Thickness: 0.7~2.0mm)
Width: Max 2.8m.
Length: Max 12m.
Thickness: 10~150mm.

Category: Truck Body Panels

Expert in Truck Body Composite Panels

TOPOLO-TRUCK has developed a series of high-quality composite panels for box truck bodies. Our composite panels are designed to perfectly combine strength, quality, aesthetics and environmental protection requirements, which can help you improve the durability, safety and transportation efficiency of your trucks. We use industry-leading materials and technologies to carefully build and provide the best solutions for your vehicle projects, and provide high-quality products that meet strict standards and exceed customer expectations.

Materials and Applications

Core	Facing	Applications
XPS (Extruded polystyrene) Foam	FRP Sheet, CFRT Sheet.	Refrigerated Trucks, Dry Freight Trucks.
PU (Polyurethane) Foam	FRP Sheet, CFRT Sheet.	Refrigerated Trucks
PET (Polyethylene Terephthalate) Foam	FRP Sheet, CFRT Sheet, Aluminum Sheet, ACP Panel.	Dry Freight Trucks
PVC (Polyvinyl chloride) Foam	FRP Sheet, CFRT Sheet, ACP Panel.	Refrigerated Trucks, Dry Freight Trucks.
PP (Polypropylene) Honeycomb	FRP Sheet, CFRT Sheet.	Dry Freight Trucks
HDPE(High-density Polyethylene) Plastic	Galvanized Steel Sheet, Aluminum Sheet.	Dry Cargo Trailers
Plywood	FRP Sheet, CFRT Sheet.	Dry Freight Trucks

Note

FRP: Fiberglass reinforced.
CFRT: Continuous fiber reinforced thermoplastic.
ACP: Aluminum Composite Panel.

Composite Panel Production Lines

We have multiple one-piece composite panel production lines that can meet vacuum adhesive composite and thermoplastic composite production. The panel size can be up to 12m long and 3.2m wide.

**Vacuum Adhesive Composite Production Line**

**Thermoplastic Composite Production Line**

CNC Machining

The composite panels are processed into designed shapes at high speed and high precision on large CNC processing platforms, and the panels in the same batch can maintain consistent precision.

Accessories Services

Provide standard and non-standard parts to meet special application requirements. Including sheet metal processing, laser welding, aluminum profile processing, metal casting processing, etc.

Truck Body CKD/SKD Services

TOPOLO-TRUCK provides box truck bodies in the form of CKD (Completely Knock Down) and SKD (Semi-Knocked Down), and provides optimized design services.
