Dry Freight Truck Bodies

Lightweight.
Strong.
Quick Assembly.
Affordable.

Dry freight trucks used to transport goods that are not temperature sensitive, are one of the most common types of trucks on the road today besides refrigerated trucks, and are better suited for long-distance hauls. Seeking stronger and lighter dry freight truck bodies is an effective measure for many transportation companies to reduce costs and improve efficiency.

CKD/SKD Custom Service

TOPOLO-TRUCK provides customized CKD/SKD dry cargo truck bodies for different truck brands, and also provides body box design services to help users solve a series of technical and application problems. We can produce dry cargo boxes of various specifications according to the requirements of customers, and there are many choices of body materials and accessories. We serve truck dealers, manufacturers, and DIY enthusiasts from all over the world and establish long-term and stable supply relationships with them.

Consulting Solutions

Common Size for Dry Freight Truck Bodies

TOPOLO-TRUCK provides customization of dry freight truck bodies within 12m in length. (Customize different sizes and specifications according to requirements). Common size ranges are as follows:

2340x1810x1900mm; 2650x1810x1900mm; 2940x1810x1900mm; 3220x1900x1950mm;
3250x1810x1950mm; 3340x1810x1950mm; 3655x1810x1950mm; 380019002000mm;
4230x1900x2000mm; 4230x1900x2000mm; 4750x2050x2100mm; 488021302130mm
4920x1900x2000mm; 5150x2050x2100mm; 5200x2050x2100mm; 575021702300mm;
5750x2170x2300mm; 6150x2050x2300mm; 6200x2300x2300mm; 6750x2300x2400mm.

Features of Dry Freight Truck Body

Lightweight Bodies

We build our dry van bodies from lightweight, high-strength composite panels. For example, the minimum weight of a 4.2X2.2X2.2m body made of new composite materials is only about 200kg. A lighter body means more fuel savings and longer driving distance for the vehicle. With the popularity of electric trucks, many vehicle manufacturers are favoring lightweight bodies.

Larger Truck Body Volume

More space can accommodate more cargo. We use one-piece composite panels for the truck body. The truck box is made up of several composite panels. It does not require a structural frame as a support, and the thickness of the box panel is between 1.0~2.0cm.

Quickly Assemble Truck Bodies

In our factory, truck body parts are mass-produced to high-precision unified specifications. After these parts are delivered to the destination site, they can be quickly assembled into a complete truck body through our installation guidance. This simple and efficient installation provides manufacturers with significant cost savings.

Quickly Assemble Dry Freight Truck Bodies

How to Choose Box Material for Dry Freight Truck Body

Since the dry freight truck body does not require thermal insulation performance, it can choose a variety of body materials, and only its strength and portability need to be considered. TOPOLO-TRUCK abandons the traditional all-metal dry cargo box structure, and we develop lighter and stronger fiberglass composite panels as the box material. We recommend PP honeycomb panels, PET foam core sandwich panels, and plywood sandwich panels for your dry freight truck projects.

PP Honeycomb Panels

● Lightweight. ● High strength. ● High Rigidity. ● Waterproof.

PET Sandwich Panels

● Lightweight. ●Easy to Cut. ● Waterproof.

Plywood Sandwich Panels

● High strength. ● High Hardness. ● High Nail-holding Strength.

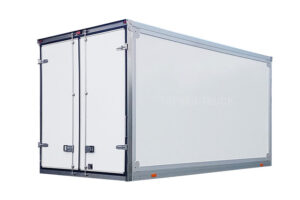

Detailed Display (4.2m Dry Cargo Truck Body)

**Kick Plates**: 6000 series high-strength T-shaped aluminum plates.

**Hinges**: 6000 series high-strength aluminum alloy.

**Floors**: Thermoplastic non-slip honeycomb honeycomb panel.

**E-Track**: Rust-resistant 550 galvanized steel.

Wrapped Edge Profiles: 6000 series high-strength aluminum alloy extruded profiles.

**Door Handles**: hidden lock lever design, made of SS304 stainless steel.

**Subframes**: Made of galvanized steel sheet metal, adjustable longitudinal spacing.

**Door Frames**: Made of painted aluminum alloy profiles, seamlessly welded.

Serving The Global Market

Currently, our CKD/SKD dry freight truck bodies are sold well in Europe, North America, South America, Southeast Asia, Australia, the Middle East and other regions, and play an important role in logistics and transportation in the fields of construction, catering, medical care, breeding, agriculture and other fields.
